Repair of Miele Dryers
Repair of Miele dryers at home in New York with a manufacturer's warranty for labor and spare parts.
Services Of The Service Center:
- Post-warranty repair of Miele dryers, cabinets, and machines in New York with on-site visits (including at home).
- Installation, setup, connection, and adaptation of new dryers and machines.
- Service maintenance of drying equipment of any type (cleaning/replacement of filters, etc.), including extending the warranty for used equipment.
- Sale of spare parts and consumables (fine filters, drive belts, thermostats, etc.).
- Disposal of outdated and malfunctioning equipment.
Advantages of our service:
-
Repair of any type of dryers
We repair dryers and machines of all types:
- Tumble dryers (TKG640WP, TMW840WP).
- Condensation type dryers (TED445WP).
- Professional drying cabinets (PDR507, PDR908).
-
Free home visit
- Visit of a team of technicians to the installation site of drying equipment: Free of charge.
- Diagnostics of dryer malfunctions: Free of charge (included in the repair cost).
-
Brand Warranty
Official service center warranty for Miele dryers repair - up to 24 months. See the "Warranty" section.
Main faults:
-
Does not turn on (does not work)
Main reasons why a dryer may not start:
- Faulty wiring, socket, plug, or other switching circuits (including a blown fuse) or lack of power in the outlet.
- Faulty start switch.
- Malfunction of the control unit (controller).
- Malfunction of the door lock.
- Failure of the motor or motor power supply circuits.
- Thermostat malfunction.
-
Does not turn off, "freezes," or shuts off spontaneously
If the Miele dryer does not turn off after the drying cycle (continues to operate for too long), the main reasons for this malfunction might be:
- Clogged filter or ventilation opening (resulting in poor ventilation).
- Thermostat or humidity sensor malfunction.
- Failure of the heater or its power supply circuits.
- Timer malfunction.
In the case of premature shutdown of the dryer, possible causes may include:
- Malfunction of the electronic control unit (controller).
- Failure of the temperature sensor.
- Mechanical issues with the drum drive, such as a broken or slipping drive belt, worn support rollers, or bearings.
- Failure of the electric motor or its power supply circuits.
-
Does not dry (does not heat)
Main reasons why a Miele dryer may not dry or dry clothes poorly:
- Overloading the dryer.
- Clogged filter.
- Incorrect operating mode settings.
- Thermostat or heating element malfunction.
- Malfunction of the control unit (software controller).
- Faulty fan.
-
Does not drain water
Main reasons why water may not drain from the dryer:
- Blockage in the drain line (hose, drain pipe, lint trap).
- Blockage or failure of the drainage pump.
- Malfunction of the control unit (software controller).
- Malfunction of the condensate reservoir filling sensor or its connecting circuits.
-
Drum does not rotate
Main reasons why the drum of the dryer may not rotate:
- If the drum is jammed (difficult or impossible to turn by hand), the most likely cause is bearing or support roller failure (wear or damage).
- Faulty electric motor (including worn brushes).
- Failure of motor power supply circuits.
- Drive belt wear or breakage.
- Malfunction of the control unit (software controller).
-
Foreign noise during operation
Main reasons for the occurrence of foreign noises during the operation of Miele dryers are mechanical defects in the drum rotation mechanism:
- "Whistling" or "popping" sound - a sign of a stretched drive belt.
- Bearing or seal wear. This malfunction is often accompanied by a characteristic humming noise.
- Drum hitting the internal wall of the casing (characteristic "metallic" scraping sound). The problem often arises due to incorrect installation of the dryer (not leveled).
- Roller wear. The malfunction is often accompanied by strong vibrations of the appliance during operation.
-
Leakage
Main reasons for the loss of seal integrity in Miele dryers:
- Clogging of the discharge hose.
- Destruction of sealing rings.
- Faulty pump.
- Destruction of the ventilation hose.
-
Error message
See Error codes for Miele dryers or call our Service Center. Call a Technician
Main repair work:
-

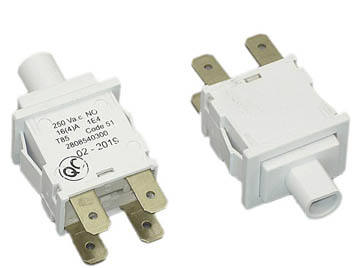

Button and Switch Replacement
(from 800$)
-

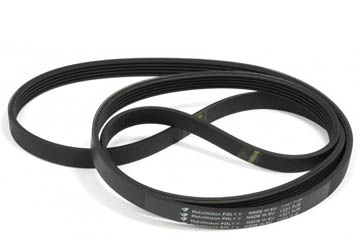

Drive Belt Replacement
(from 1200$)
-

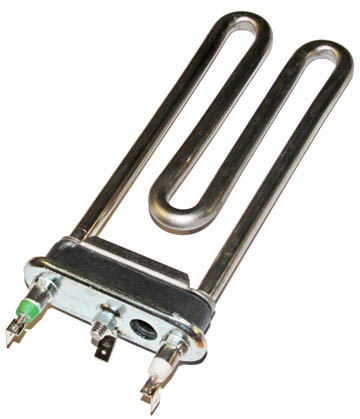

Tubular Heater Replacement
(from 1500$)
-

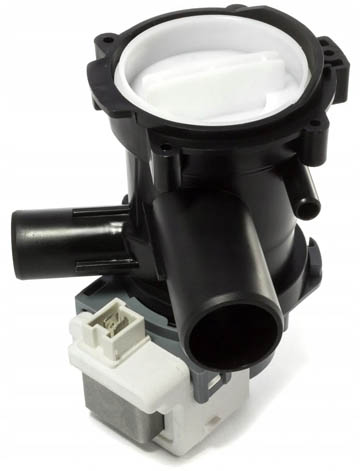

Replacing the Drain Pump
(from 2800$)
-

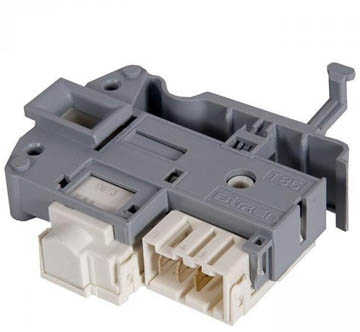

Door Lock Device Replacement
(from 1200$)
-

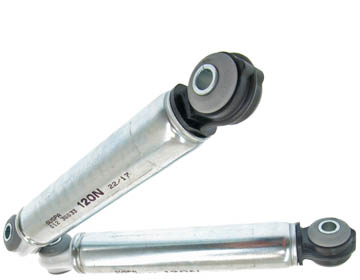

Shock Absorber Replacement
(from 3800$)
-
Bearing Replacement
(from 1500$)
-

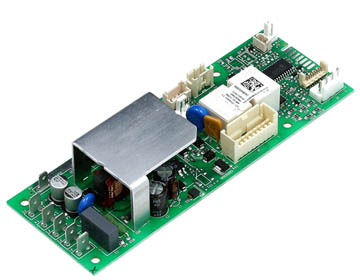

Module Repair
(40% of the new price)
Error codes:
-
>Error Codes for Miele Drying Machines
Error code Cause, troubleshooting F1 Temperature sensor error (NTC sensor).
An NTC sensor malfunction or short circuit is detected in the heater NTC sensor.
To solve the problem (error 01):
- Check the sensor.
- Check the connectors.
- If the fault persists, contact Miele Service Center. Replacement of the corresponding sensor is required.
F2 Temperature sensor error (NTC sensor).
Disconnection (open circuit) of the heater NTC sensor is detected.
To solve the problem (error 02):
- Check the sensor.
- Check the connectors.
- If the fault persists, contact Miele Service Center. Replacement of the corresponding sensor or repair of its connecting circuits is required.
F3 Air temperature sensor error (fan NTC sensor).
An NTC fan sensor malfunction or short circuit is detected.
To solve the problem (error 03):
- Check the sensor.
- Check the connectors.
- If the fault persists, contact Miele Service Center. Replacement of the corresponding sensor is required.
F4 Air temperature sensor error (fan NTC sensor).
Disconnection (open circuit) of the fan NTC sensor is detected.
To solve the problem (error 03):
- Check the sensor.
- Check the connectors.
- If the fault persists, contact Miele Service Center: Replacement of the corresponding sensor or repair of its connecting circuits is required.
F20 Heating error.
Insufficient air heating speed or complete absence of heating is detected.
To solve the problem (error 20):
- Check the temperature sensor.
- Check the dryer heating relay (a relay fault or fault in its connecting circuits is possible).
- Check the dryer heating element and its power circuits.
F29 Dryer heating element error.
To solve the problem (error 29):
- Check the dryer heating relay (a relay fault or fault in its connecting circuits is possible).
- Check the dryer heating element and its power circuits.
F32 Door closure error.
No signal is registered indicating that the door is closed.
To solve the problem (error 32):
- Check the possibility of freely closing the door (there might be obstruction by foreign objects).
- Check the mechanical condition of the door lock device (UBS).
- Check the door closure sensor.
F33 Door opening error.
No signal is registered indicating that the door is opened.
To solve the problem (error 33):
- Check the possibility of freely opening the door (obstructions might be present by foreign objects).
- Check the mechanical condition of the door lock device (UBS).
- Check the door closure sensor.
F36 UBS Error: malfunction of the door lock mechanism.
To solve the problem (error 36):
- Check the mechanical condition of the door lock device (UBS).
F38 ELP Communication error.
A fault in the communication line between the control unit and the power block (ELP) is registered.
To solve the problem (error 38):
- Disconnect the drying machine from the power supply for a few minutes, then reconnect.
- If the fault persists, contact Miele Service Center: Diagnosis and repair of electronic blocks at the component level are required.
F39 Control and display block error (BAE).
F41 Control unit error.
An error in reading the EEPROM permanent memory is registered.
To solve the problem (error 41): Try completely disconnecting the drying machine from the power supply for a few minutes, then reconnect. If the error persists, repair the controller at the component level (replace or reprogram the EEPROM microchip).
F43 Compatibility error.
The control unit does not recognize one of the modules of the drying machine. Error 43 sometimes occurs with an incorrect replacement of blocks during repair.
F45 Control unit error.
An error in reading the Flash memory is registered.
To solve the problem (error 45): Try completely disconnecting the drying machine from the power supply for a few minutes, then reconnect. If the error persists, repair the controller at the component level (usually by replacing the Flash memory microchip).
F46 Communication error with the display block.
A fault or incorrect connection with the display block (LCD screen) is registered.
To solve the problem (error 46):
- Check the integrity of the display connection cable.
- Check the LCD screen (possible malfunction or exposure to moisture).
F47 Communication error on the BAE/STD interface.
An error in connecting the display module is registered.
F50 Drum drive error.
Insufficient drum rotation speed or complete absence of rotation is registered.
To solve the problem (error 50):
- Check the possibility of drum rotation (possible obstruction by foreign objects).
- Check the load in the drying machine (possible overload).
- Check the functionality of the drive motor and its power circuits.
F55 Drying timer error: exceeding the maximum drying cycle time is registered.
To solve the problem (error 55):
- Completely disconnect the drying machine from the power supply for a few minutes, then reconnect.
- Check the drying timer.
- Check the mode-switching relay.
F66 Heat exchange error.
Insufficient efficiency of the heat exchange in the drying process is registered.
To solve the problem (error 66):
- Check the condition of the filters (possible clogging).
- Check the air flow sensor.
- Check the temperature sensors.
- Check the fan operation (possible malfunction of the fan itself or obstruction of the impeller rotation by foreign objects).
F102 Smart home error.
An error in connecting to the smart home system is registered.
To solve the problem (error 102), check the Wi-Fi connection.
F103 Smart home error.
An error related to equipment compatibility or connection method is registered.
F156 Air temperature sensor error.
An issue or short circuit of the air NTC temperature sensor is registered.
To solve the problem (error 156):
- Check the sensor.
- Check the connections.
- If the issue persists, contact the Miele Service Center (replacement of the respective sensor may be required).
F157 Air temperature sensor error.
A disconnection (contact opening) of the air NTC temperature sensor is registered.
To solve the problem (error 157):
- Check the sensor.
- Check the connections.
- If the issue persists, contact the Miele Service Center (replacement of the respective sensor or repair of its connecting circuits may be required).
F158 Compressor overheating.
To solve the problem (error 158):
- Check ventilation openings and filters (possible blockage).
- Check the radiator (possible blockage).
- Check the compressor functionality.
- If the issue persists, contact the Miele Service Center.
Determine the cause of the breakdown and the full cost of repair:
Question and Answer:
-
What causes error 50 to appear on the Miele TED 445 WP dryer?
Error F50 indicates a drum rotation issue: the drum rotates at an insufficient speed or does not rotate at all. The main reasons for this malfunction are:
- Excessive loading of the dryer.
- Drooping of the drive belt (often due to stretching).
- Blockage preventing the drum from rotating by foreign objects.
-
Good day. Recently, my Miele T7744C dryer has started interrupting the drying process or sometimes gets stuck displaying "Luftwege reinigen" and showing error F66. What could be the issue?
Error 66 indicates a disruption in the heat exchange. The efficiency of this heat exchange is determined by airflow sensors and temperature sensors. To solve the problem:
- Firstly, check the condition of the filters (clean or replace if necessary).
- Next, inspect the condition of the impeller of the heat pump: it might be clogged, reducing the efficiency of rotation and air supply. There have been cases where the impeller was simply loose and almost freely moving on the motor axis.
If the problem persists, it's best to contact the Service Center. Now it's necessary to check the functionality of the heat pump and all sensors. This requires the appropriate qualifications and component knowledge.
-
What causes the "air channel" error in the Miele dryer?
The "air channel" error indicates insufficient warm air flow, leading to inefficient operation of the dryer. This error usually occurs due to a clogged heat exchanger or lint filter.
To resolve the issue, it's necessary to clean the heat exchanger and replace the lint filter (refer to the user manual).
